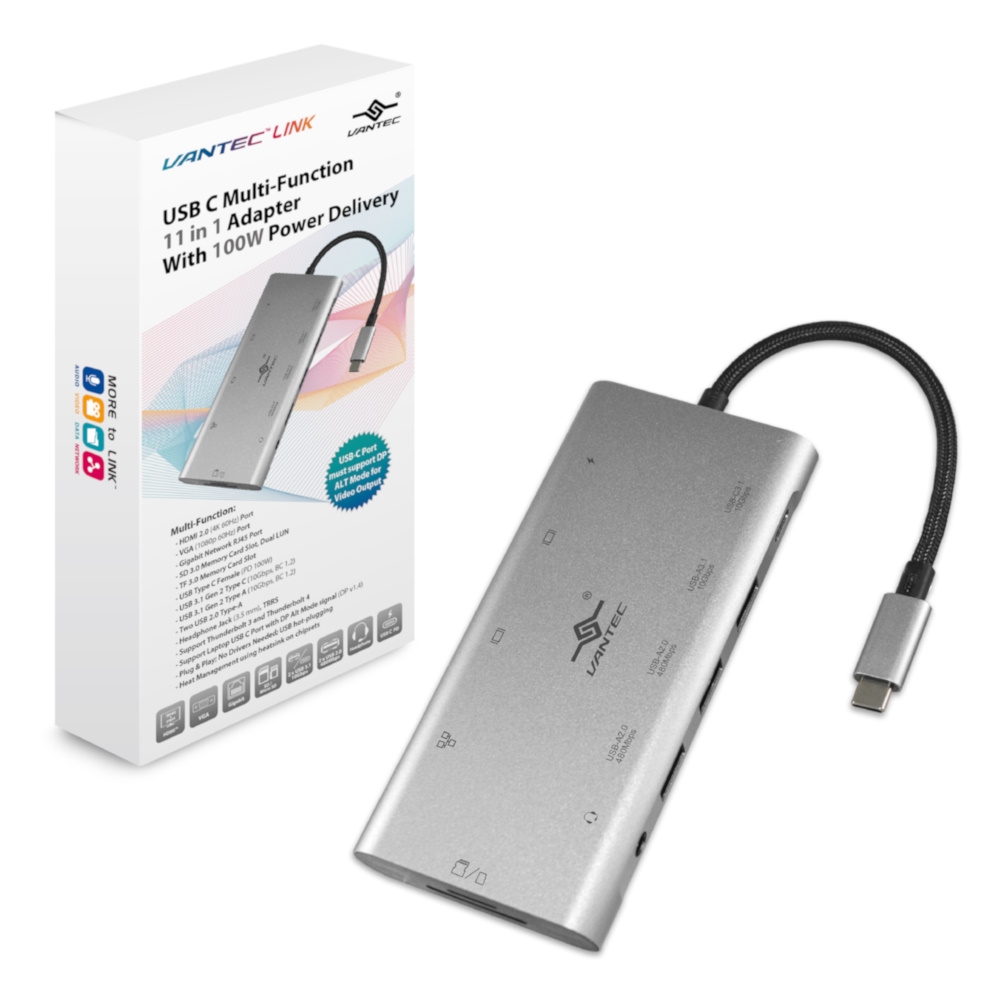

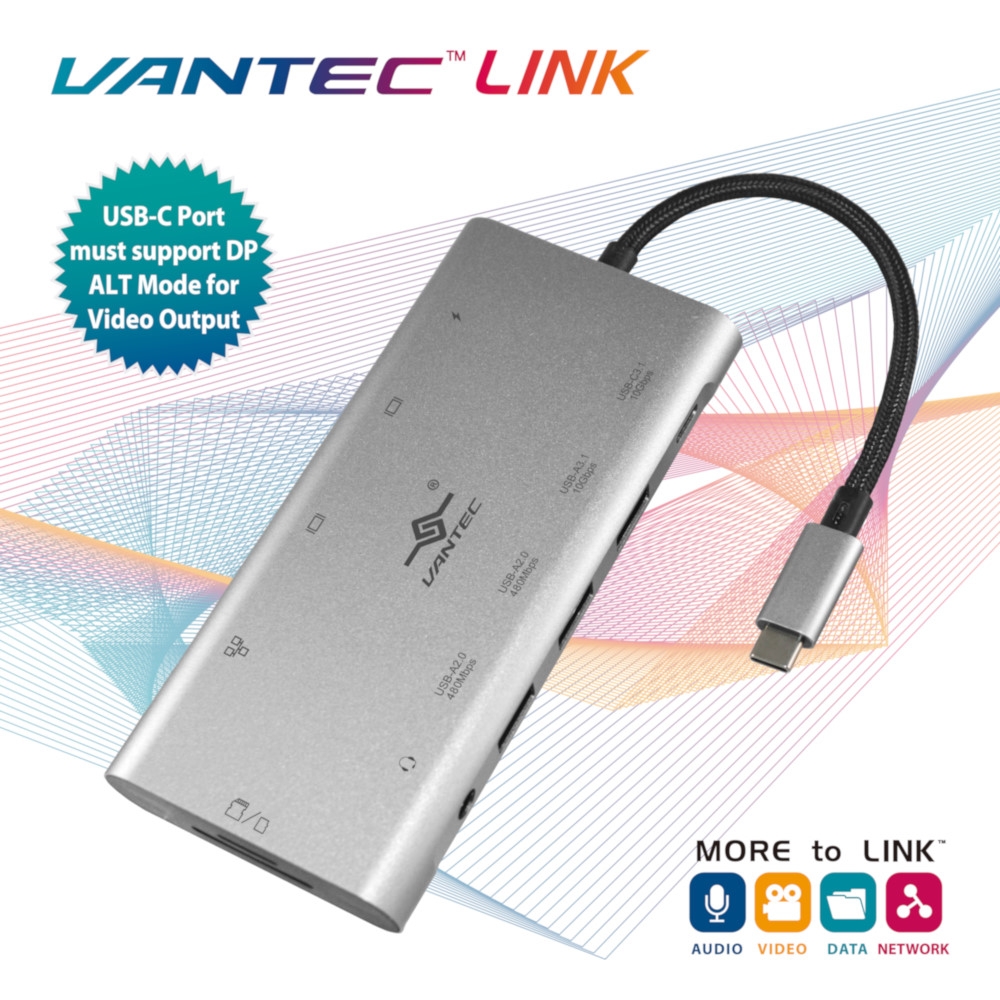

  • Vantec Link USB C Multi-Function 11 in 1 Adapter With 100W Power Delivery

    Model: CB-CU306MDSH

    Coming Soon

    • Multi-Function:
       - HDMI™ 2.0 Port (Max at 3840x2160 w/ 1 monitor@60Hz), with Audio
       - VGA (1920x1080p@60Hz) Video Port
       - Gigabit Ethernet RJ45 Port
       - SD 3.0 and MicroSD (TF) Memory Card  Slot (SDXC, SDHC), Dual LUN
       - USB 3.1 Gen 2 (10Gbps), BC 1.2: 5V@1.5A, Type-C Port
       - USB 3.1 Gen 2 (10Gbps), BC 1.2: 5V@1.5A, Type-A Port
       - Two USB 2.0 Type-A Port
       - Headphone Jack (3.5 mm), In and Out, TRRS
       - USB C PD Port for 100W Max Power Delivery
    • Support Thunderbolt 3 and Thunderbolt 4
    • Support Laptop USB C Port with DP Alt Mode signal (DP v1.4)
    • Plug & Play; No Drivers Needed; USB hot-plugging
    • Durable Design with Heat Management using heatsink on chipset

    ___________________________

    Descriptions and Features:

    This Vantec Link USB C Multi-Function 11 in 1 Adapter with 100W Power Delivery is the Forth Generation of the classic adapter. It is a highly integrated adapter and packed with functionality. This Multi-Function adapter is pack with 11 functions in to one 138x61x21 mm compact adapter making it easy to carry around or use it anywhere. Ports list include HDMI™ 2.0 Port, VGA Port, Gigabit Ethernet RJ45 Port, two card reader for SD and MicroSD Memory Cards (Dual LUN), Two USB 3.1 Gen 2 Ports, Two  USB 2.0 Type-A Port, Headphone Jack (3.5 mm), and USB C PD Port for 100W Power Delivery Pass-thru charging Port. You can call it a docking station or multi-function adapter but the bottom line is the broad functionality that matters. It is so easy to connect using the reversible USB C connector to your latest system USB C Port with DP ALT Mode capability or bring it with your laptop everywhere you go for the best connectivity and be productive.

    Features:
    • Multi-Function:
      >> HDMI™ 2.0 Port (Max at 3840x2160 w/ 1 monitor@60Hz), with Audio
      >> VGA (1920x1080p@60Hz) Video Port
      >> Gigabit Ethernet RJ45 Port
      >> SD 3.0 Memory Card  Slot (SDXC, SDHC), Dual LUN
      >> MicroSD Memory Card Slot (TF)
      >> USB 3.1 Gen 2 (10Gbps), BC 1.2: 5V@1.5A, Type-C Port
      >> USB 3.1 Gen 2 (10Gbps), BC 1.2: 5V@1.5A, Type-A Port
      >> Two USB 2.0 Type-A Port
      >> Headphone Jack (3.5 mm), In and Out, TRRS
      >> USB C PD Port for 100W Max Power Delivery
    • Support Thunderbolt 3 and Thunderbolt 4
    • Support Laptop USB C Port with DP Alt Mode signal (DP v1.4)
    • Plug & Play; No Drivers Needed; USB hot-plugging
    • Durable Design with Heat Management using heatsink on chipset
    • Design for Mac OS X 10.x, or Windows 10/11, or ChromeBook with USB C port
    • Compact and Highly Integrated Design
    • Heat Management with Aluminum Casing and Durable design
    • Compliant to USB Type-C Cable & Connector Specs Rev 1.1
    • Compliant USB Power Delivery Specs Rev 2.0; Adaptive Voltage


    ________________

    Specifications:

    Model:    CB-CU306MDSH
    Adapter USB Connector:    USB Type-C (USB C reversible connector)
    Device Connectors:
      > 1 x HDMI™ 2.0 Port (4K60Hz), w/Audio
      > 1 x VGA (1920x1080p 60Hz) Video Port
      > 1 x Gigabit Ethernet RJ45 Port
      > 1 x SD Memory Card  Slot (SDXC, SDHC), Dual-LUN
      > 1 x MicroSD Memory Card Slot (TF)
      > 1 x USB 3.1 Gen 2 (10Gbps), BC 1.2: 5V@1.5A, Type-C Port
      > 1 x USB 3.1 Gen 2 (10Gbps), BC 1.2: 5V@1.5A, Type-A Port
      > 2 x USB 2.0 Type-A Port
      > 1 x Headphone Jack (3.5 mm), In and Out, TRRS
      > 1 x USB C PD Port for 100W Max Power Delivery

    Video Resolutions* Screen Display: Laptop – A, Monitor1 – B, Monitor2 - C
    Using Windows OS
       >> Laptop + HDMI HDMI: 3840x2160@60Hz, AB
       >> Laptop + VGA VGA: 1920x1080p@60Hz, AB
       >> Laptop + HDMI + VGA HDMI+VGA: Both at 1920x1080p@60Hz, ABC/ABB/AAA

    Using Mac OS X
       >> MacBook + HDMI HDMI: 3840x2160@60Hz, AB
       >> MacBook + VGA VGA: 1920x1080p@60Hz, AB
       >> MacBook + HDMI + VGA HDMI+VGA: Both at 1920x1080p@60Hz, ABB/AAA

    *Note: ABB refer to monitor 1 and 2 in mirror mode; AAA refer to all 3 screen in mirror mode
      Display capability depend on Laptop and OS capabilities, please check with Laptop manufacturer

    Display Modes:    Primary, Extended or Mirror (depend on OS capability and System capability)
    Power Delivery:    Dedicated USB C PD port for pass thru charging system with 100W Max
    Power Supply:    Bus-powered
    Material:    Aluminum, ABS Plastic
    Dimensions:    5.4 x 2.4 x 0.8 inches / 137.2 x 60.4 x 20.5 mm
    Weight:    5.6 oz. / 157.7 g
    Cable length:    6.5 inches / 165 mm
    OS Support:    Windows 10/11; Apple OS X 10.10, or greater; Latest ChromeBook; Linux

    System Requirements:
    • USB Type-C port MUST support DP Alt Mode for any Video Display
    • Optional Thunderbolt 3 or Thunderbolt 4 port
    • Optional device: HDMI Display device, USB device, SD Card, Network

    Package Contents:
    • 1 x Vantec Link USB C Multi-Function 11 in 1 Adapter With 100W Power Delivery Adapter
    • Quick Guide

    UPC:    844767023861
    EAN:    4716872104109

    Country of Origin:    Made in Taiwan

    Environmental:
    Operating Temperature 0 ℃ to +45℃
    Operating Humidity 10% to 85 % RH (no condensation)
    Storage Temperature -10℃ to +70℃
    Storage Humidity 5% to 90% RH (no condensation)
