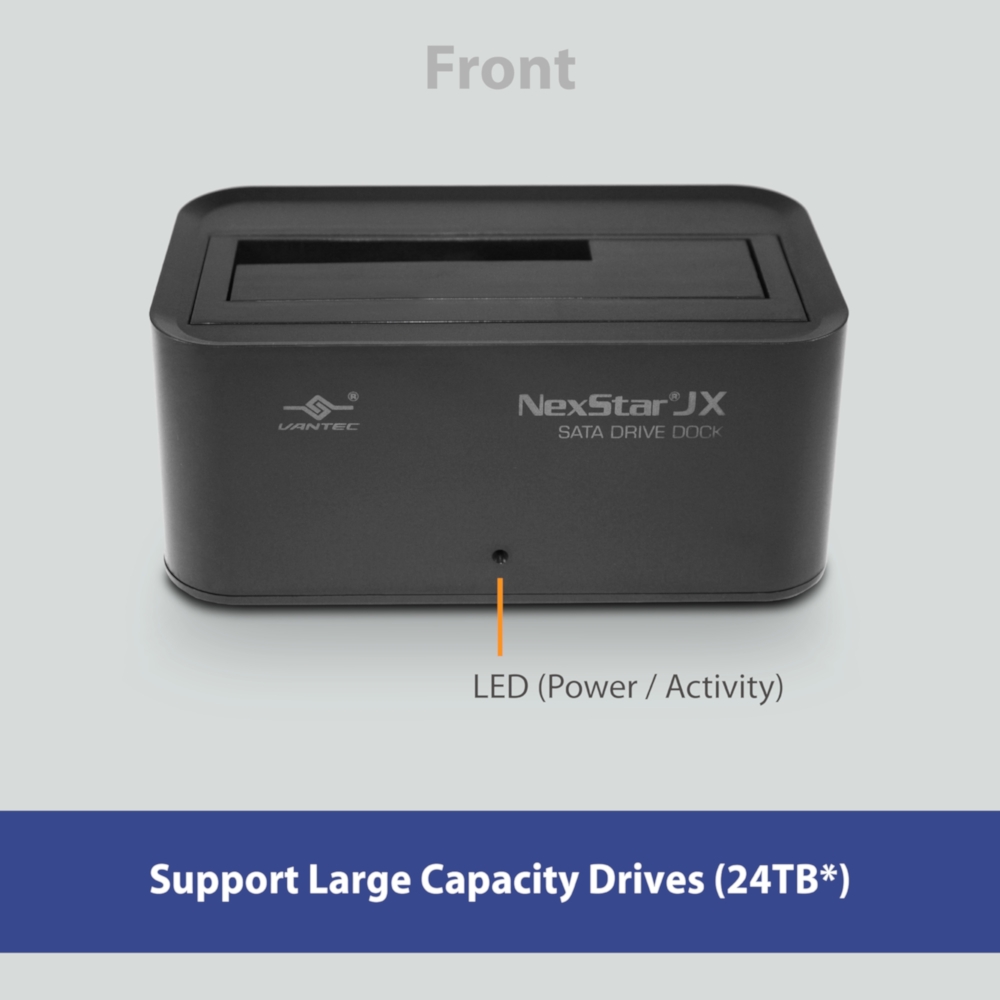

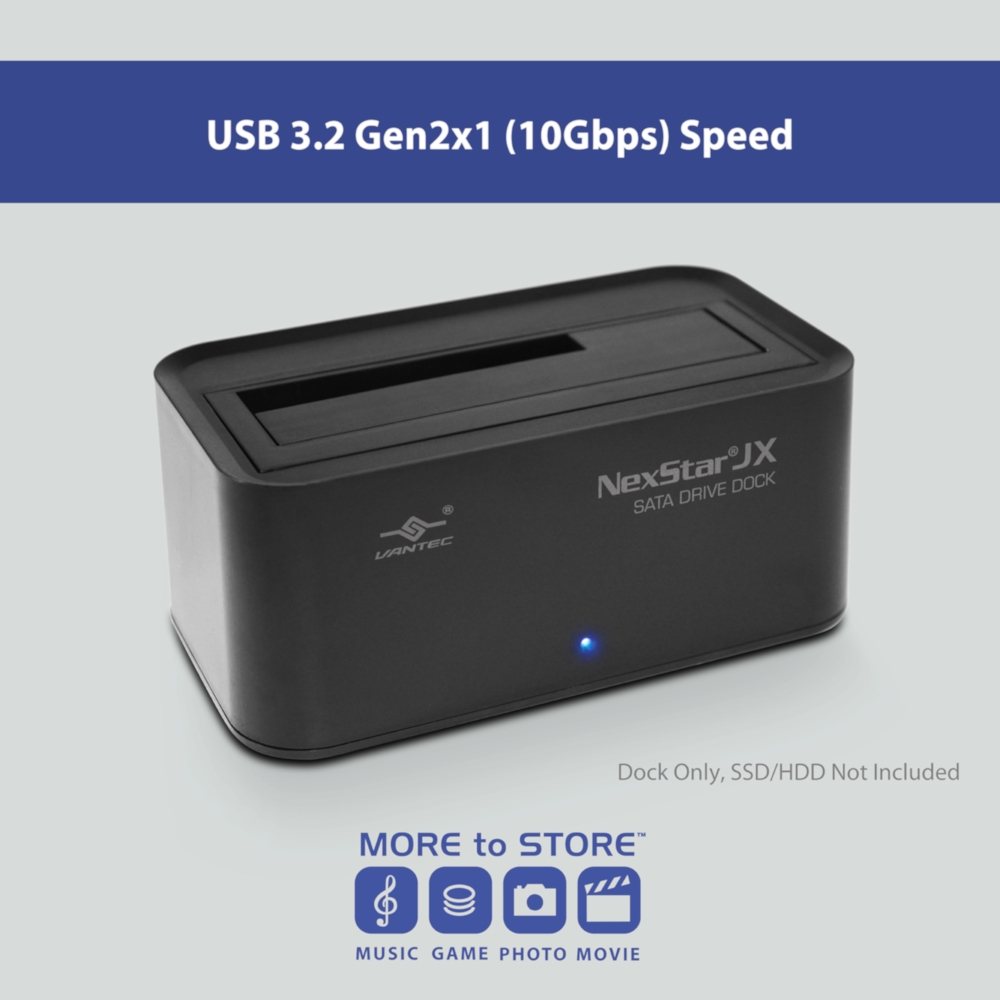

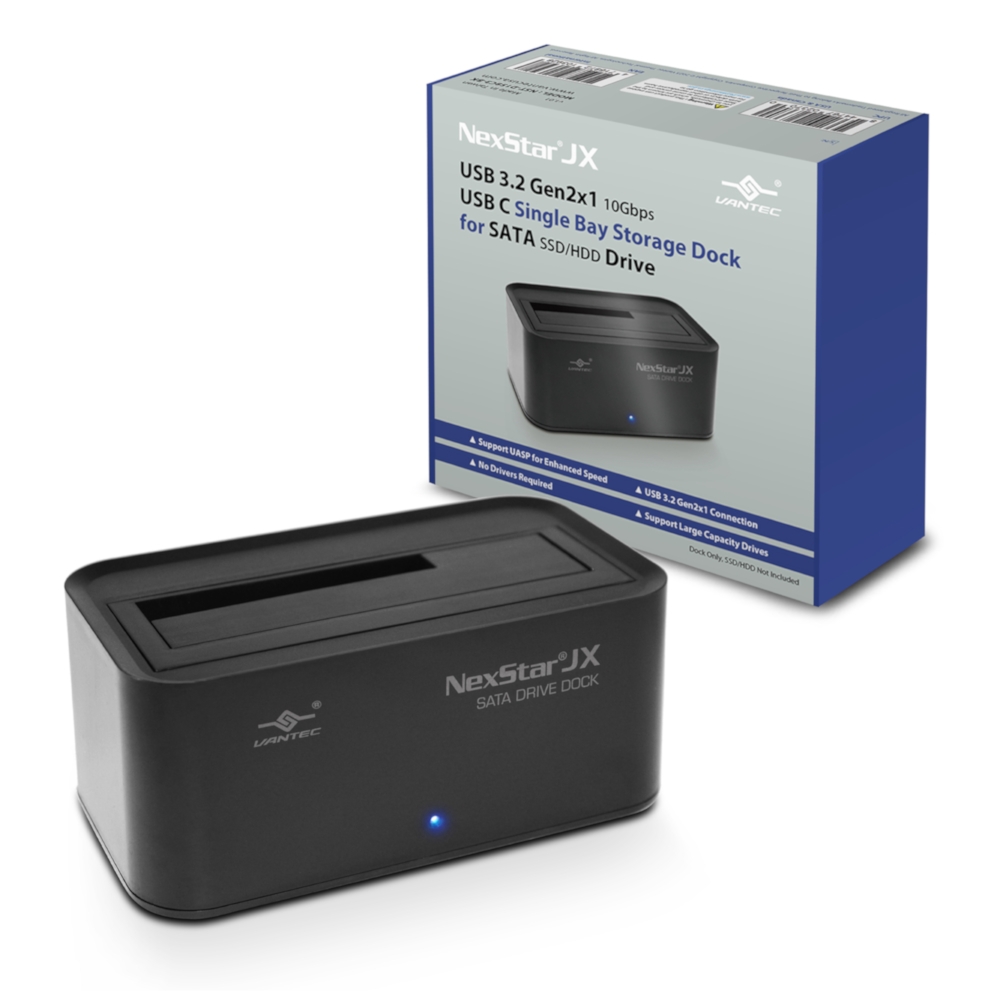

  • NexStar JX, USB 3.2 Gen2x1, USB C, Single Bay Storage Dock for SATA Drive

    Model: NST-D158C3-BK

    Coming Soon

    • USB 3.2 Gen2x1 (10Gbps) Speed
    • Native USB C; Support UASP for Enhanced Speed
    • Support Large Capacity Drives (24TB*)
    • Support Fast SATA 6 Gbps Interface, Compatible with Legacy SATA II/I
    • Quick Swap Drive; Use with 2.5”/3.5” SATA HDD/SSD/Hybrid Drive
    • USB Hot-Swappable without Rebooting System
    • Hi-Quality Shielded USB C to C/A Cable Ensures Data Integrity and Speed




    ___________________________

    Descriptions and Features:

    This Speedy SATA Drive Dock (NST-D158C3-BK) is designed for any SATA Storage Drive. It connects your Fast SATA III drive to your system USB C port and is capable of a theoretical speed of 10Gbps. The design is simple, it works just like a toaster, once connected, simply insert any 2.5" or 3.5" SATA III/II/I drive into this Dock, power it ON, and you are ready to use the storage. The Dock comes with native USB C, USAP support, integrated with the latest USB 3.2 Gen2x1 technology, and USAP support to help speed up file copy or access to the stored data. Swapping drive is fast and easy, just perform a USB eject, power down, swap drive, power back ON and it is ready again. The need of opening up your computer case or installing the hard drive is now a distant memory. This JX series USB 3.2 Gen2x1 (10Gbps) Single Bay Dock is the perfect solution to simplify your system workspace.

    Features:

    • USB 3.2 Gen2x1 (10Gbps) Speed
    • Native USB C; Support UASP for Enhanced Speed
    • Support Large Capacity Drives (24TB*)
    • Support Fast SATA 6 Gbps Interface, Compatible with Legacy SATA II/I
    • Quick Swap Drive; Use with 2.5”/3.5” SATA HDD/SSD/Hybrid Drive
    • USB Hot-Swappable without Rebooting System
    • Hi-Quality Shielded USB C to C/A Cable Ensures Data Integrity and Speed




    ________________

    Specifications:

    Model:    NST-D158C3-BK

    Dock Support:    SATA III/II/I HDD/SSD/Hybrid Drive
    Drive Size Support:    2.5”/3.5” SATA HDD/SSD/Hybrid Drive
    Internal Interface:    Standard SATA III (Compatible with SATA II/I)
    External Interface:    Reversible USB C
    Interface Cable:    USB C to C/A, USB C (Dock side) to USB C or Type-A (system side)
    USB cable Length:    100 cm / 39 inches
    Power Supply:    Universal Switching AC adapter, Output: 12VDC, 2A
    HD Capacity:    Up to 32TB* (*as of 6/23/2025, the max capacity)
    Material:    ABS Plastic
    Dimension (dock only):    133 x 75 x 59 mm / 5.2 x 2.9 x 2.3 inches
    Weight (dock only):    263g / 0.6 lbs.
    Package Dimension:    150 x 137 x 65 mm / 5.9 x 5.4 x 2.6 inches

    Environmental:
    Temperature
    Operating: 0°C to +50°C
    Non-Operating: -20°C to +70°C
    Humidity
    Operating: 5% ~ 90% (Non-Condensing)
    Non-Operating: 5% ~ 90% (Non-Condensing)

    System Requirements:
    • Latest version of Windows 7, 8, 10 or Windows 11 / Mac OS X 10.6 or later / Latest Liunx OS
    • Computer with USB 3.0 or better, USB C or USB Type A port

    Package Contents:
    • NexStar JX Single Bay Dock
    • USB C to C/A cable
    • Ac Adapter
    • Quick Guide

    UPC:  844767023700
    EAN:  4716872103928

    Country of Origin: Made in Taiwan
