NexStar SX, USB 4, 40Gbps, M.2 NVMe Enclosure

Home / Products / Hard Drive Enclosures / 2.5" Enclosures / NexStar SX, USB 4, 40Gbps, M.2 NVMe Enclosure

NexStar SX, USB 4, 40Gbps, M.2 NVMe Enclosure
NST-M240C4
Coming Soon
- Tooless Design, Quick and Easy Install or Upgrade
- USB 4, 40Gbps, native C, No driver needed, plugged & read
- Easy and Fast Data Access to Big capacity M.2 NVMe
- Designed for Video Editing, Backup purposes and/or Secondary Storage
- Compatible with all M.2 NVMe of sizes 2230, 2242, 2260, 2280
- Use as a Data recovery tool and/or Transfer data between drives
- Compatible with All Latest OS with USB support, UASP, BOT, TRIM
Questions? Email to Support@vantecusa.com

BUY NOW
- fb
- g+
- tt

Highlight
Spec
Support
FAQ

This Enclosure is designed for Speed, Using M.2 NVMe Modules up to 16TB, maybe more later. The whole enclosure is designed to be the heatsink for the M.2 NVMe in the Enclosure, no drivers are required, Plugged and Ready, and supports all current OS available on the marketplace.

Features:

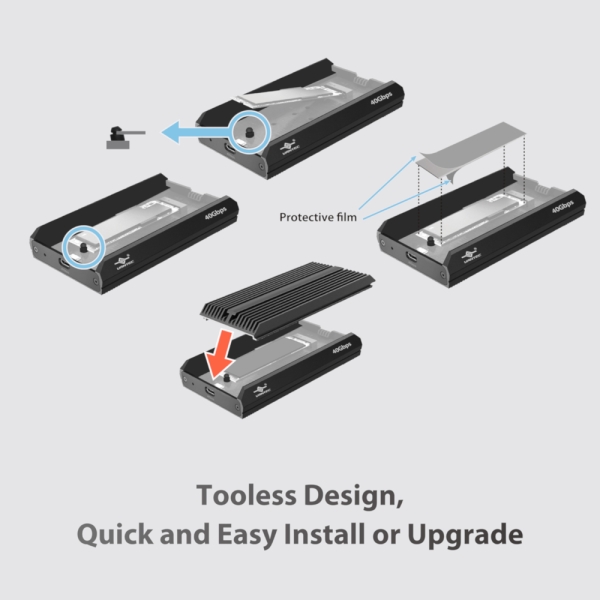

- Tooless Design, Quick and Easy Install or Upgrade

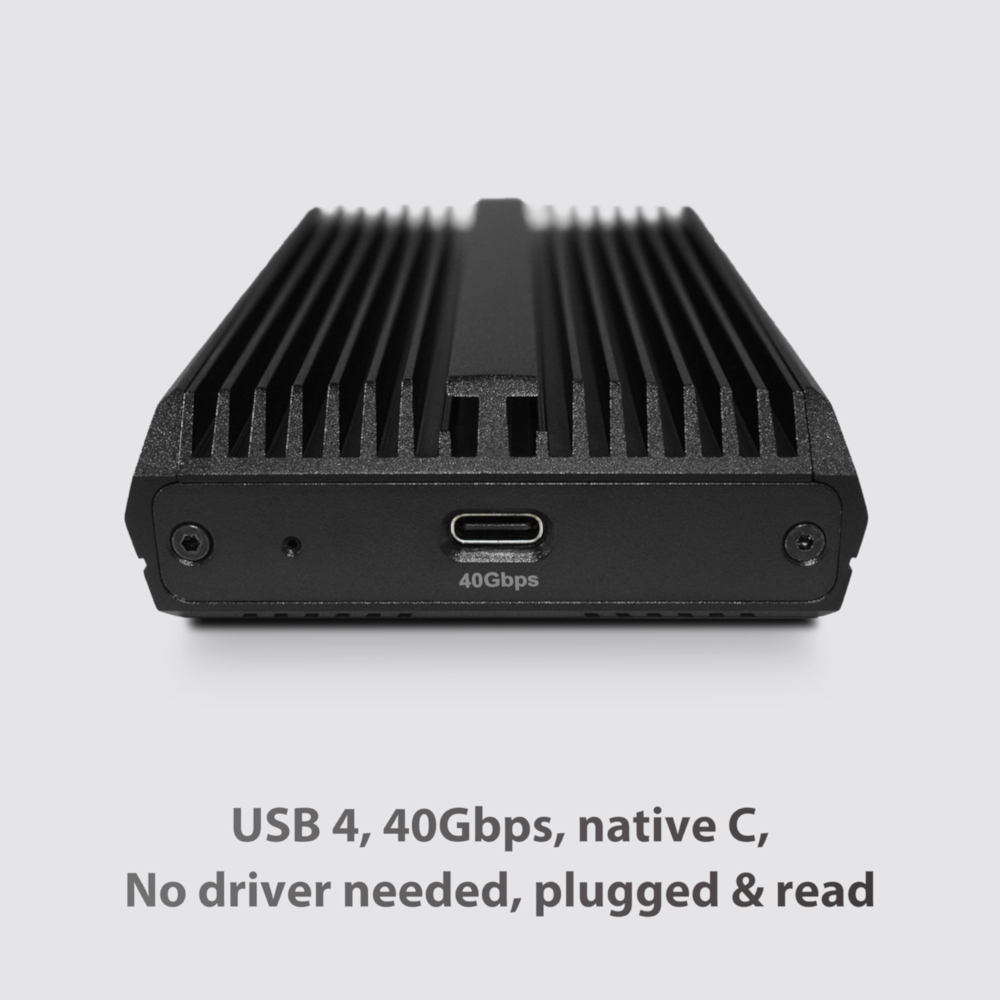

- USB 4, 40Gbps, native C, No driver needed, plugged & read

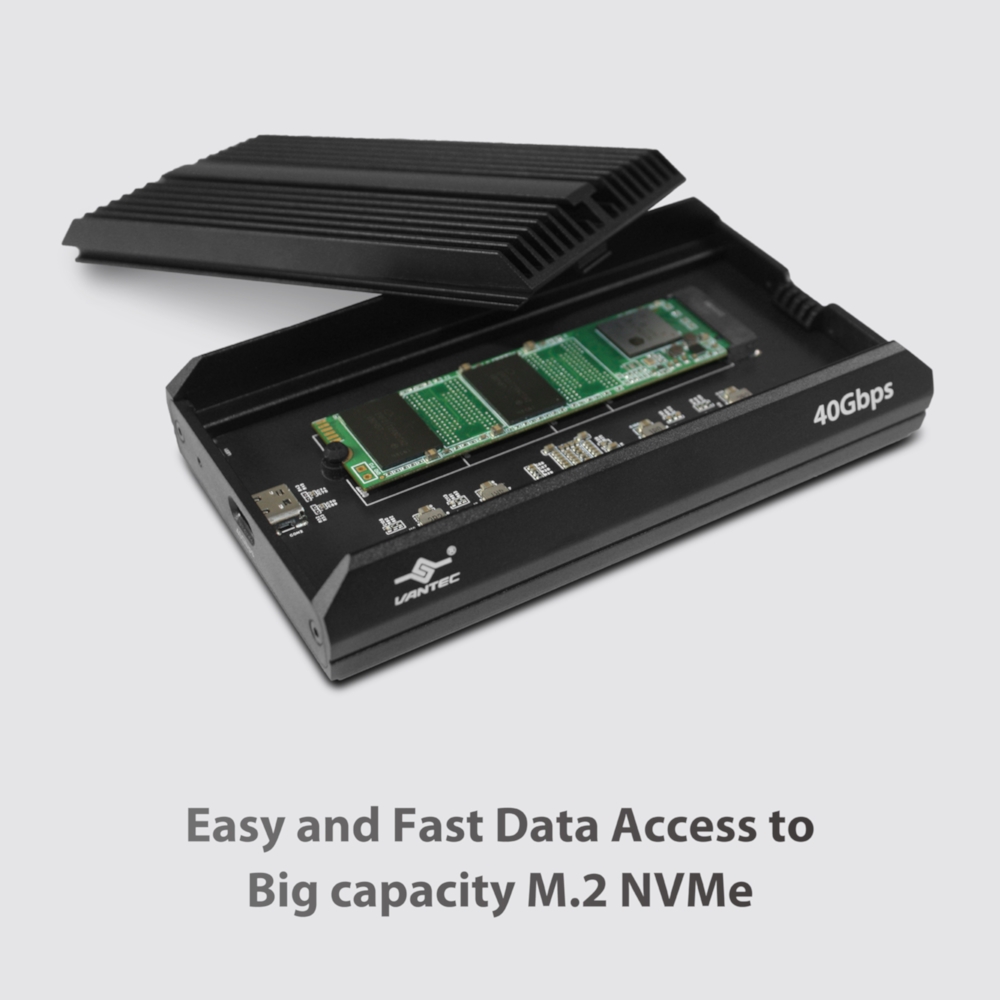

- Easy and Fast Data Access to Big capacity M.2 NVMe

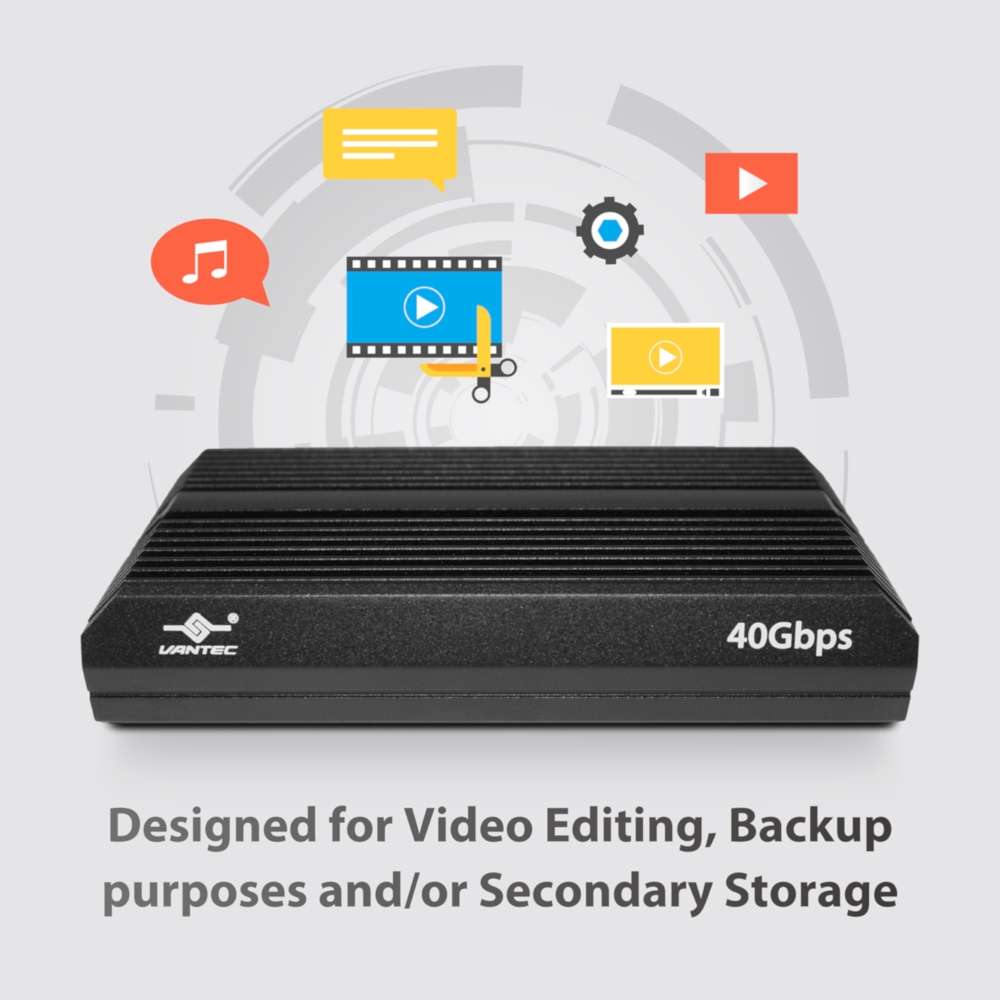

- Designed for Video Editing, Backup purposes and/or Secondary Storage

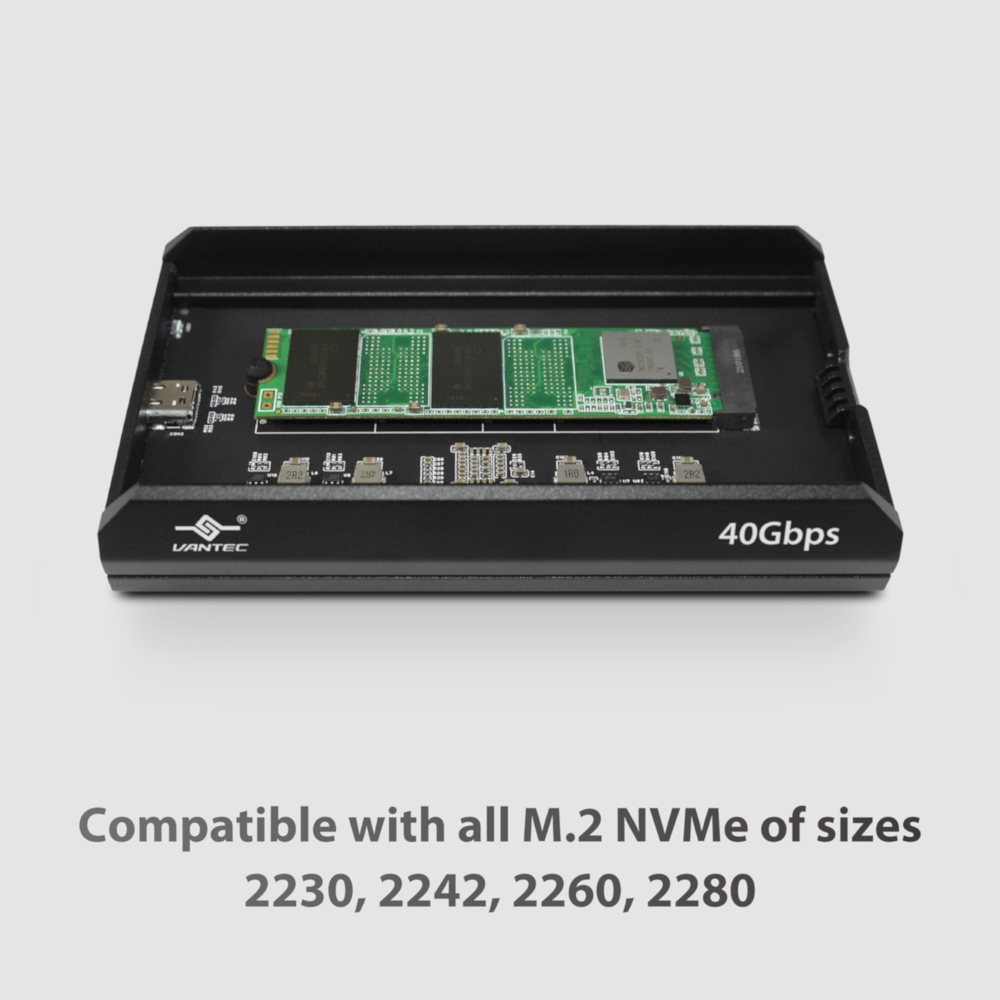

- Compatible with all M.2 NVMe of sizes 2230, 2242, 2260, 2280
- Use as a Data recovery tool and/or Transfer data between drives
- Compatible with All Latest OS with USB support, UASP, BOT, TRIM
Note: For Maximum 40Gbps support, your USB 4 port must support 40Gbps. Please check with your system manufacturer to make sure it is capable of 40Gbps and power requirement from your USB C port.

Model: NST-M240C4

USB Connector: Native USB C, USB 4 (USB reversible connector)

Device Connectors: M.2 NVMe

M.2 Size Support: 2230, 2242, 2260, 2280

Drive Capacity: User may put up to 16TB ** (could be more later)

Power Supply: ** Bus Powered

Material: Aluminum

Item Dimensions (L x W x H): 4.76 x 2.86 x 0.93 inches / 120.9 x 72.6 x 23.7 mm

Item Weight: 10.2 oz. / 289 g

Cable Type and length: USB C to C (40Gbps), 8.75 inches / 222.25 mm

OS Support: Windows 10/11, Mac OS X 10.10 or higher, and Linux OS

** IMPORTANT NOTE: Tested maximum capacity. The User system USB port MUST provide enough power to the user M.2 NVMe module. If the user system USB port cannot provide enough power to the M.2 NVMe, it will not work. For Maximum 40Gbps support, your USB 4 port must support 40Gbps. Please check with your system manufacturer to make sure your USB port is capable of 40Gbps speed. Not all Thunderbolt port will support USB 4 and/or 40Gbps speed. 40Gbps refer to theoretical speed, actual speed may vary.

System Requirements:

USB 4, Type-C port for Max usage of speed
Newer OS like Windows 10/11, OS X 10.10, latest Linux

Package Contents:

1 x USB 4 NVMe Enclosure
USB C to C cable (Power and Data)
Quick Install Guide

UPC: 844767023885

EAN: 4716872104123

Country of Origin: Made in Taiwan

Warranty: 1 year parts and labor

Shipping:

Package Dimensions (L x W x H): 140 x 3.54 x 1.77 inches / 140 x 90 x 45 mm

Package Weight: (11 oz /327 g)

Carton Dimensions (LxWxH): ?? x ?? x ?? inches / ?? x ?? x ?? cm

Carton Weight: ???? (lbs/Kg)

Carton Quantity (units): ?? Unit per carton

Environmental:

Operating Temperature 0 ℃ to +45℃

Operating Humidity 10% to 85 % RH (no condensation)

Storage Temperature -10℃ to +70℃

Storage Humidity 5% to 90% RH (no condensation)
